MagWiper MW-1B
The interactive 3D model needs a modern browser with WebGL. Every detail it shows is listed in the specification below.
Drag to rotate Scroll to zoom Hover a marker for detail Model built to reference imagery — not a manufacturer CAD file
Detail

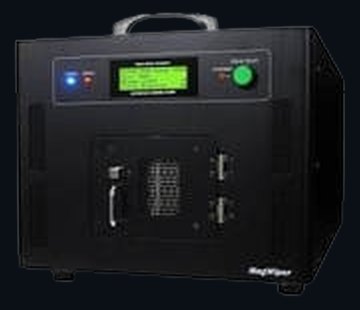

NSA Degausser MagWiper
MagWiper MW-1B
Degaussing reduces the magnetisation of the device to zero. Nothing recovers data afterwards, which is why governments and listed companies require it before sensitive media is disposed of — and why the erasure has to be demonstrable rather than merely claimed.
The MagWiper is listed in the NSA/CSS Degausser Evaluated Products List, which is the only evidence most auditors will accept that a field of this strength does what the vendor says it does.
What it does
- Deletes 100% of data in 0.1 seconds
- Erased data can never be recovered
- Produces a field of approximately 20,000 gauss
- Cycle time as short as 15 seconds
- Simple operation with automatic recharging
- One 3.5″ hard drive, or eight 2.5″ drives, per pass
- Up to 240 × 3.5″ or 1,920 × 2.5″ drives an hour
Safe to stand next to
- Fully enclosed design
- Chamber door locks under slight pressure
- External field measured well under the safe level
Media it erases
Compliance
- Listed in the NSA/CSS Degausser Evaluated Products List
- PCI DSS
- NIST SP 800-36 and NIST SP 800-88
- HIPAA · PIPEDA · GLBA (Gramm–Leach–Bliley Act)
- California Senate Bill 1386
- Hong Kong Government requirements
Specification
| Model | MagWiper MW-1B |
|---|---|
| Supported media | 3.5″ and 2.5″ hard drive, floppy disk, LTO, DDS/DAT, AIT and similar |
| HDD recording | Perpendicular and in-plane (longitudinal) |
| Data erasing time | 0.1 seconds |
| Recharging time | Approximately 15 seconds |
| Magnetic field | 1,592 kA/m — approximately 20,000 Oe |
| Power source | AC 100/115/200/220/240 V, 50/60 Hz |
| Power — charging | 115 V / 14 A |
| Power — standby | 115 V / 1 A |
| Dimensions | 333 (W) × 285 (H) × 630 (D) mm |
| Full chamber | 114 (W) × 45 (H) × 231 (D) mm |
| Erase zone | 106 (W) × 43 (H) × 162 (D) mm |
| Weight | 46 kg / 101 lb |
| Environment | 5–35 °C, 20–80% humidity, non-condensing |
| Supplied with | Main unit, media rack, AC power cable, instruction manual, warranty card |
| Country of origin | Japan |
Source: Manufacturer brochure, 2 pages
