Detail

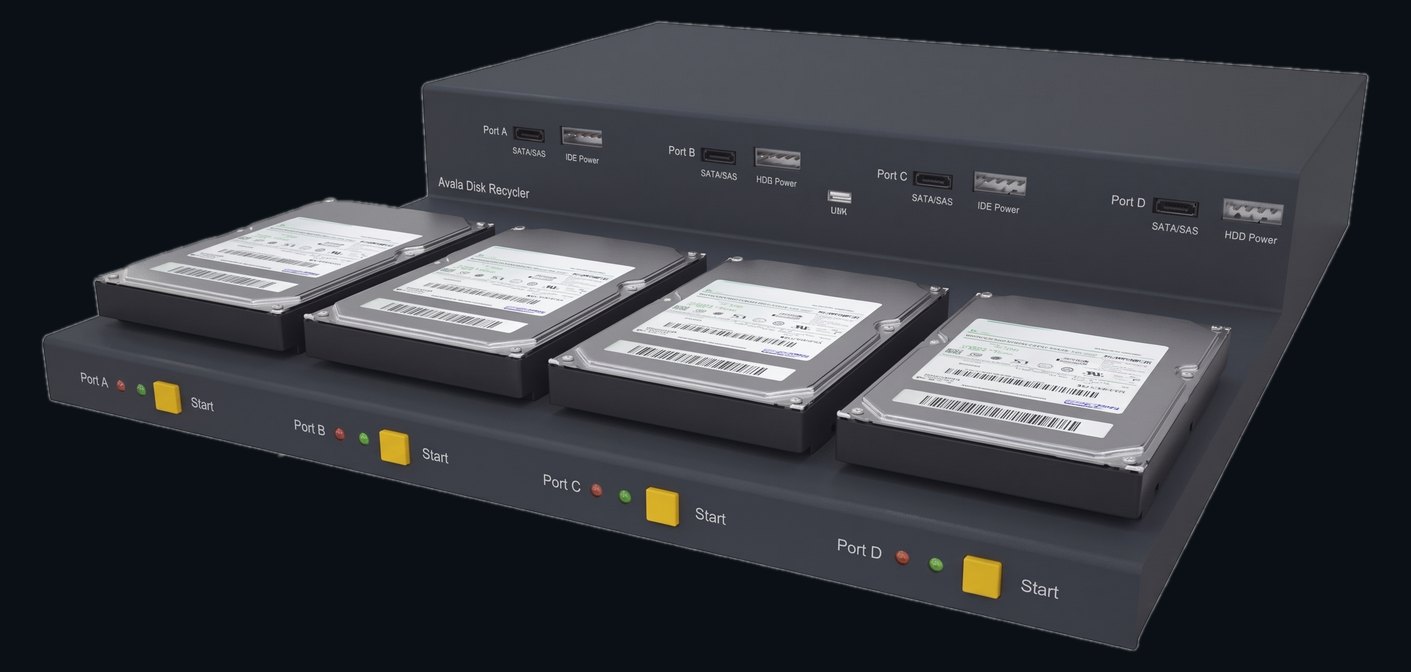

Atola Disk Recycler
DEY-DR
Wiping is only half of decommissioning. The Recycler tests and repairs as well, so drives with life left in them go back into service instead of into a skip — and the ones that do not are erased to a standard you can put in a report.
Each of the four ports works on its own drive, on its own task, at the same time. Chain the units and one software interface drives the lot.
Functions
Why it is quick
- 470 MB/s — 28 GB/min — on every port, not shared across them
- Four ports take SAS and SATA drives; IDE through an adapter
- Each disk works independently, with a different task assigned per port
- Connect up to 200 units and work 800 drives from one interface
- Units mount into a standard server rack
- Two-click firmware update across every unit
- Reporting needs no external database
Wiping to a standard you can cite
- DoD 5220.22-M
- NIST 800-88
- Security Erase
- Fill with pattern
- Checksum verification on completion
It does not need a computer to work. A USB drive holding a script is enough to run the unit in stand-alone mode, which matters when the job happens somewhere a laptop should not go.
Specification
| Model number | DEY-DR |
|---|---|
| Supported interfaces | SAS, SATA I/II/III, IDE with adapter |
| Ports | 4, each taking SAS or SATA drives |
| Ethernet | RJ45 / 1 GbE |
| Control | Windows application, or stand-alone |
| Maximum transfer | 470 MB/s (28 GB/min) per port |
| Power | 90 W average, 150 W peak |
| Dimensions | 425 (W) × 500 (D) × 84 (H) mm |
| Weight | Approximately 8 kg |
Source: Manufacturer brochure, 2 pages
