by DataExpert
Cyber MZR-DT
The interactive 3D model needs a modern browser with WebGL. Every detail it shows is listed in the specification below.
Drag to rotate Scroll to zoom Hover a marker for detail Model built to reference imagery — not a manufacturer CAD file
Detail

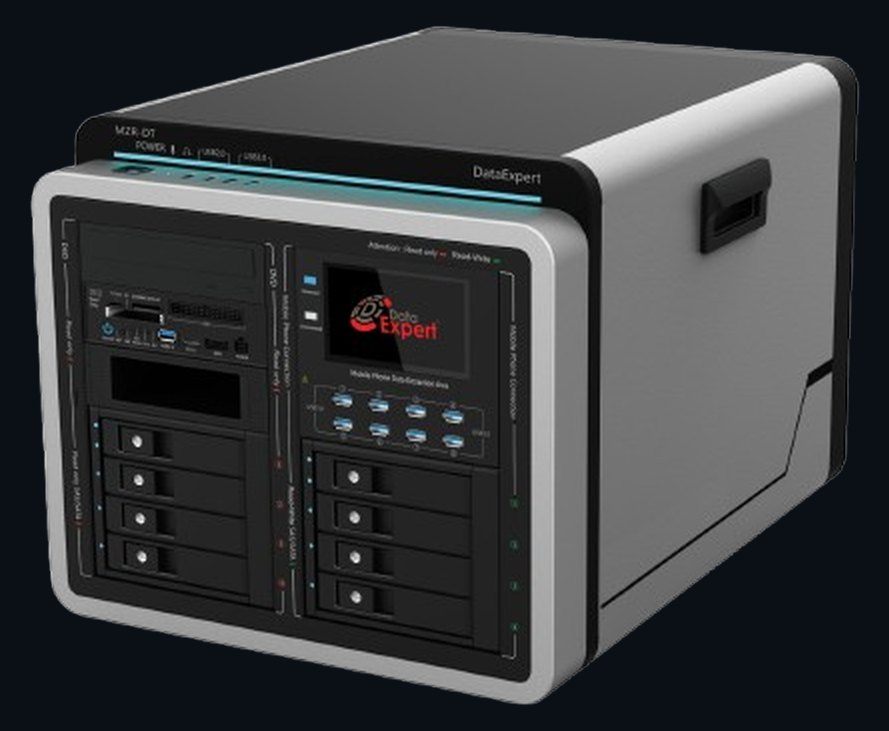

Cyber MZR-DT
Cyber MZR-DT
One case instead of a bench full of boxes. The write-blocked side and the read/write side are separated and colour-coded on the front plate, the blocker is built in rather than cabled on, and the phone extraction panel has its own screen — so an examiner can image a drive and pull a handset without moving to another machine.
What the built-in software does
Designed for forensic work
- High performance hardware, configurable for demanding forensic software
- Write blocker and read/write area easy to tell apart, to reduce human error
- Built-in multi-interface write blocker — PCI-E, SATA/SAS, USB 3.0, IDE
- D-Box forensic imaging software in English, Japanese and Chinese
- Connected devices identified automatically by brand, model and serial number
- Several phones connected at once for multi-tasking extraction
Write-blocked — read only
Read/write
System
| Model | Cyber MZR-DT |
|---|---|
| Operating system | Microsoft Windows 11 Pro, 64-bit |
| Processor | Intel Core i9-12900K — 16 core, 24 thread, 3.90–5.1 GHz |
| Chipset | Intel Z790 |
| Memory | 64 GB DDR4 UDIMM non-ECC (2 × 32 GB) |
| System drive | 1 TB M.2 NVMe SSD |
| Working storage | 8 TB 7200 rpm SATA for temporary files and processing |
| Evidence storage | 8 TB 7200 rpm SATA |
| Graphics | Nvidia RTX 3060, 12 GB GDDR6 |
| Optical | Blu-Ray writer |
| Power supply | 1200 W modular |
Dashboard and interfaces
| Write blocker (read only) | Tool-free hot-swap SAS/SATA 12 Gb bays × 4, plus the DataExpert blocker with PCI-E, SATA/SAS, USB 3.0 and IDE |
|---|---|
| Read/write | Tool-free hot-swap SAS/SATA 12 Gb bays × 4 |
| Phone connection panel | 4.3-inch LCD with connected/disconnected status for eight handsets |
| Network | Intel I219-V Gigabit × 1, Realtek RTL8125-CG 2.5G × 1 |
| Audio | 7.1 channel high definition, rear mounted |
| Expansion | PCI-E 3.0 ×16 × 3, M.2 PCI-E 3.0 ×4 (2280 / 22110) × 2 |
| Input | Wireless keyboard and mouse |
Software
- D-Box Forensic Imaging Software, built in
- Optional computer forensics: Belkasoft Evidence X
- Optional phone forensics: GMDSOFT MD-Series or MobilEdit Forensic Pro
- Optional upgrade to the Tableau Forensic Universal Bridge T356789iu
Physical
| Dimensions | 423 (W) × 362 (H) × 530 (D) mm |
|---|---|
| Weight | 40 kg |
| Warranty | Three years limited |
Source: Manufacturer brochure, 1 page
